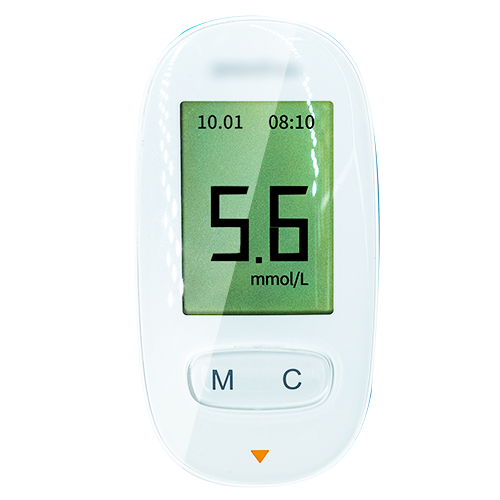

    Blood Glucose Meter

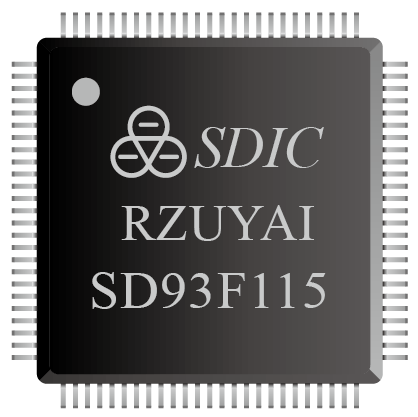

    The application of the glucose meter which based on SD93F115 chip can be fully used of its rich built-in hardware resources. It can save most of the peripheral components of the glucose meter and reduce the cost compared to other general SoC.
    Program overview
    There are two types of blood glucose meter in principle which are photochemical and electrochemical. At present, most of the glucose meter products on the market are electrochemical. The specifically designed test strips for glucose meter are able to measure the blood sugar level through the chemical reactions.
    Program advantages

    • Rich built-in hardware resources, can save most peripheral components and reduce costs

    • Low power mode, using ordinary 3V battery, can also work for a long time

    Rich built-in hardware resources, can save most peripheral components and reduce costs

    Low power mode, using ordinary 3V battery, can also work for a long time

    Features

    • 32 bits MCU, 24 bits high precision ADC, 12 bits SAR ADC

    • Built-in sensor excitation output

    • With LCD driver module, support a variety of driver modes

    • Built-in sine wave generator with selectable output frequency. It supports an 8-electrode BIA fat measurement

    • Two operational amplifiers: OPA and OPB

    • Built-in UART、I²C、SPI、PWM/PDM、TIMER、BUZZER、INT、RTC

    • Built-in silicon temperature sensor

    • Operating voltage range: 2.4~5.5V

    Application diagram
